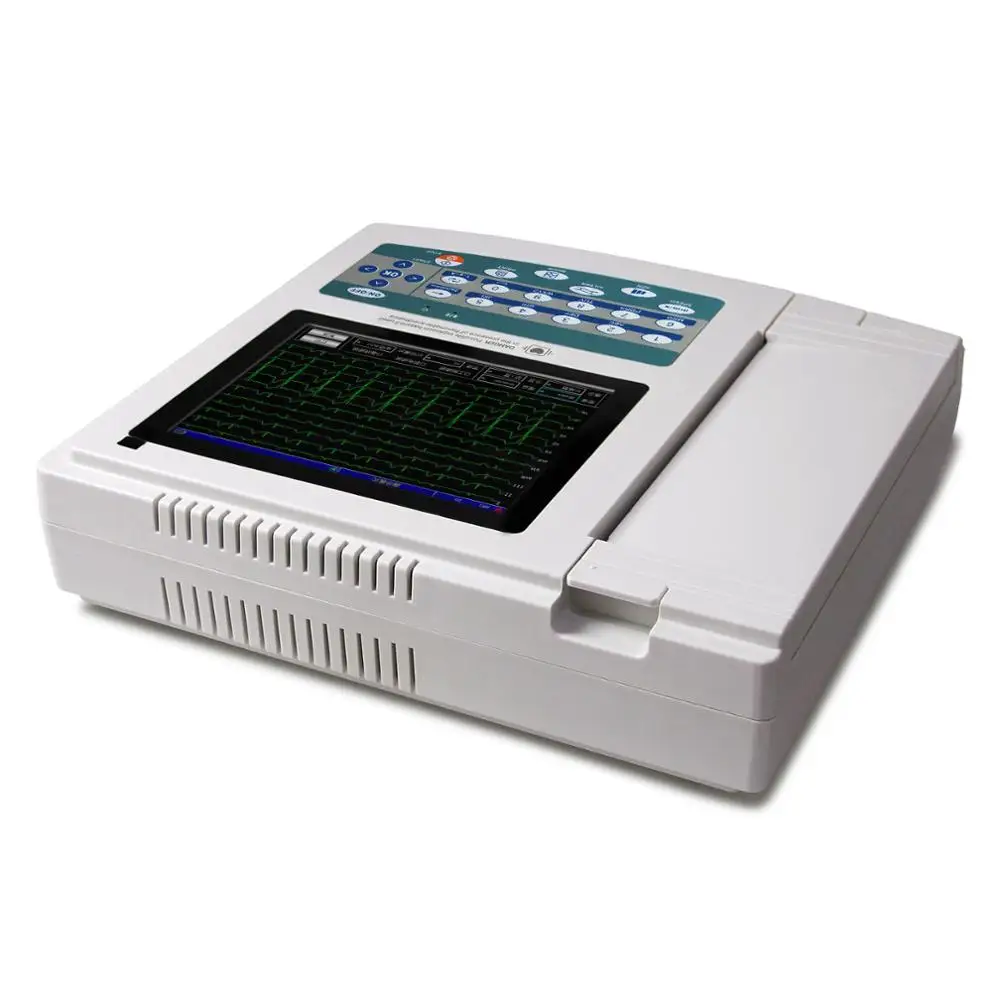

ECG1200G is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.
1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.3)Multiply printing modes and formats, including auto 12x1, auto 6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.4)Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.5)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.6)Built-in memory stores up to 1000 cases, convenient for case review and statistic.7)Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.8)In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.
Input mode: floating and defibrillation protectionFrequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)CMRR: >60dB, >100dB(add filter)Time constant:≥ 3.2sPatient leak current: <10µACalibration voltage: 1mVSensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%Noise level: ≤15µVp-pInput circuit current: ≤50nAInput impedance: ≥50MΩSampling accuracy: 12-bitSafety classification: class I, type CF and defibrillation-proof applied partRecording mode: thermal printing systemPaper size: 210mm(W)×20m(L)Sampling frequency: 1000HzEMG interference filter: 25Hz/35Hz (-3dB)Power frequency filter: AC 50Hz/60Hz(-20dB)
Auto: 25, 50mm/s, ±5%Rhythm: 25, 50mm/s, ±5%Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.Manual record: set record according to record format, manually switching leads.Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)Power supply: AC: 100V~240V(50/60Hz)DC: 14.8V/3500mAh rechargeable lithium batteryFuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250VWaterproof degree: IPX0Working mode: continuous working
Working environmentTemperature: 5℃~40℃Relative humidity: 25%~95%(non-condensing)Atmospheric pressure: 700hPa~1060hPaTransport and storage environmentTemperature: -40℃~+55℃Relative humidity: ≤95%Atmospheric pressure: 500hPa~1060hPaDimension: 340mm(L) × 320mm(W) × 85mm(H)Weigh: 3.2Kg
